• Summary & Spec

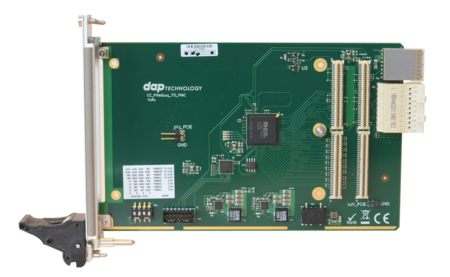

    PMC Carrier PXIe x4

    Looking for a way to plug your PMC mezzanine card into a computing platform with a 4-Lane PXIe slot?

    Well, the CC_PXIeG1x4_to_PMC is your answer! It is effective, field tested and compliant with all applicable standards.

    Specification

    PCI Express Interface number of PCI Express lanes, max speed 4 / 2.5Gbps
    form factor standard height, half length
    compliance

    PXI Express Peripheral Module /
    cPCIe Type 2 Peripheral Board

    Bridge chip type Tundra Tsi384
    compliance PCI Express PCI/PCI-X Bridge 1.0
      PCI-to-PCI Bridge Architecture 1.2
    PMC Interface PCI width 32 or 64 bits
    PCI speed 25, 33, 50 or 66 MHz
    PCI-X width 32 or 64 bits
    PCI-X speed 50, 66, 100 or 133 MHz
    width selection automatic
    speed selection semi-automatic (switch settings limit bus speed)
    IO Voltage 3.3V
    card detection -
    compliance PCI Local Bus 3.0
      PCI-X 2.0 (mode 1 only)
      PCI Bus PMI 1.2
    Power System to PMC 12V (25W), -12V (2W), 5V (25W), 3.3V (15W)
    PMC card power 25W
    consumption 15W
    Device P/N

    CC_PXIeG1x4_TO_PMC

    Compliance CE, FCC, RoHS, REACH
  • Media

    PMC Carrier PXIe x4 Media files

    Product Image(s)





  • Documents

    PMC Carrier PXIe x4 Documentation

  • Sales

    PMC Carrier PXIe x4 Sales info

    Package Contents

    Please contact DapTechnology or DapUSA directly by sending an email to sales(at)daptechnology.com for additional information about pricing and availability!
