    FireSpy® 430b(T)/830b(T)

    The FireSpy430b(T) and FireSpy830(bT) bus analyzers are the single bus models in the 4th generation of IEEE-1394 analyzers from DapTechnology. Based on the industry leading FireSpy810 the all new and enhanced architecture of the FireSpy430b(T)/830b(T) have again defined a new reference in IEEE-1394 test equipment! They comprise a significantly more powerful on-board processor, more memory and improved connectivity to the host.

    The seamless integration of the SAE AS5643 protocol makes the FireSpy430b(T)/830b(T) the preferred tool for many Aerospace & Defense development tasks. DapTechnology has taken considerable efforts to fully support the AS5643 protocol in all major functional areas of the FireSpy430b(T)/830b(T) and continuously updates the analyzer functionality according to implementation requirements and ongoing standardization efforts.

    4th Generation Hardware

    In order to to keep up with the growing data analysis needs this new generation of 1394 bus analyzers has been completely re-architectured.

    The FireSpy430b(T)/830b(T) have a single 1394 node connected to one analysis engine. It are controlled by a dual core ARM processor running at 667MHz. The node is connected to three 1394 ports. All ports are connected to a 1394 bilingual connector in compliance with the 1394 standard.

    The FireSpy430b(T)/830b(T) are equipped with 5 GB internal memory and extensive hardware filtering and trigger possibilities. The analyzer can be connected to a host computer using its USB3.0 interface. On the host you can control the FireSpy using a graphical user interface to analyze and display the bus traffic in a user-friendly way; or you can use the API to program your own control software.

    Key features

    • IEEE 1394-2008 Beta
    • Supported speeds depend on exact model:
      • FireSpy830: S400-S800 Beta, S100-S400 Legacy
      • FireSpy430b: S100-S400 Beta
    • Optionally, all ports are active transformer coupled
      • FireSpy830bT: three (3) Transformer-coupled Ports : S400-S800 Beta
      • FireSpy430bT: three (3) Transformer-coupled Ports: S200-S400 Beta
      • FireSpy430bT1: three (3) Transformer-coupled Ports: S100-S200 Beta
    • Host connection via USB 3.0
    • On-board dual-core 667 MHz ARM processor and programmable logic
    • 5GByte internal memory
    • GUI and API for WindowsTM Operating Systems
    • 1 analyzing node with a total of 3 1394 ports
      • Powerful software provides:
        • Monitor
        • Recorder
        • Commander
        • Scriptor (programmable in C-like language)
        • Generator
        • Filter and Trigger
        • Mil1394 Signal Monitor
        • Mil1394 Player
      • Support for AS5643, AV/C, SBP2, IP1394 and IIDC protocols
      • Internal SelfTest
      • C/C++ API with LabVIEWTM Wrappers

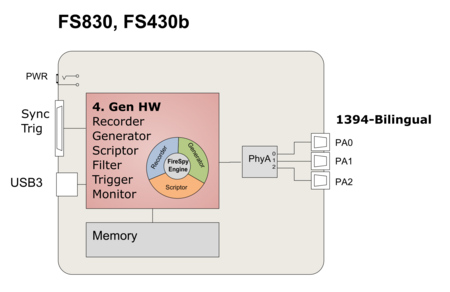

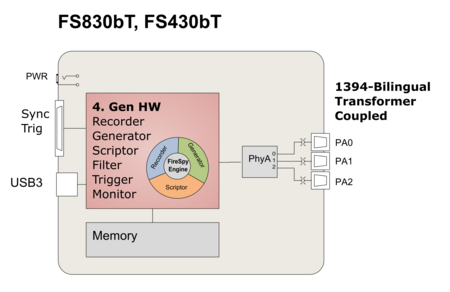

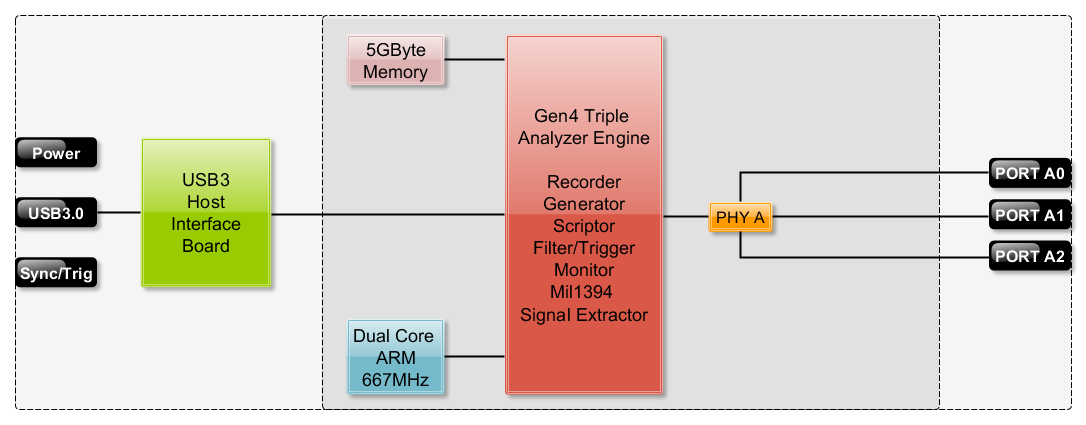

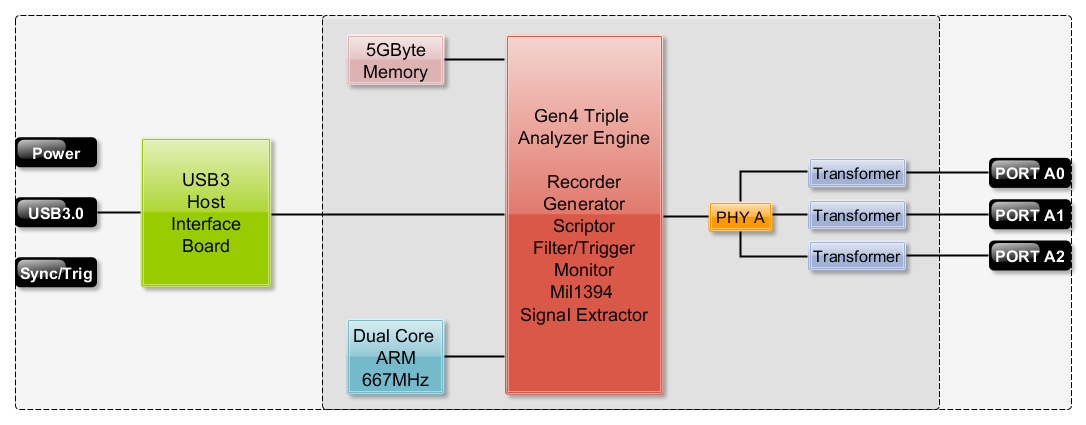

      Block Diagram

    • Specification

      FireSpy® 430b(T)/830b(T) specifications

      Dimensions: 125 mm x 48 mm x 301 mm
      Weight: 1166g
      Power Requirements: 12V, 40 Watt maximum
      Regulatory compliance: FCC Class A , CE
      Connections:

      USB3.0-connector for host-computer

      3x IEEE-1394 connectors (Bilingual)

      BNC-connector for external trigger-input signal

      Indicators





      Multicolor LEDs for:
          Unit status, Recorder, Scriptor, Generator, Active (per Node)

      Red LEDs for:
           USB, Power

      Switches:

      Tumble switch for Power On/Off

      Part Number:

      FS0830 (FS0830AS5643 with AS5643 protocol)

      FS0830bT (FS0830bTAS5643 with AS5643 protocol)

      FS0430b (FS0430bAS5643 with AS5643 protocol)

      FS0430bT (FS0430bTAS5643 with AS5643 protocol)


      Codes:

      ECCN: 3A992.a

      HST: 9030.40.00



      SW Add-on modules:









      AS5643 protocol software pack

      SBP2 protocol software package

      IIDC protocol software package

      AV/C protocol software package

      IP1394 protocol software package

    • Media

      FireSpy® 430b(T)/830b(T) media files

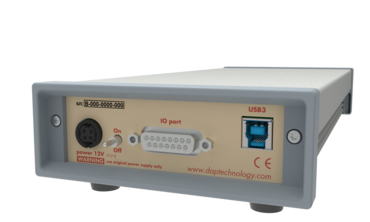

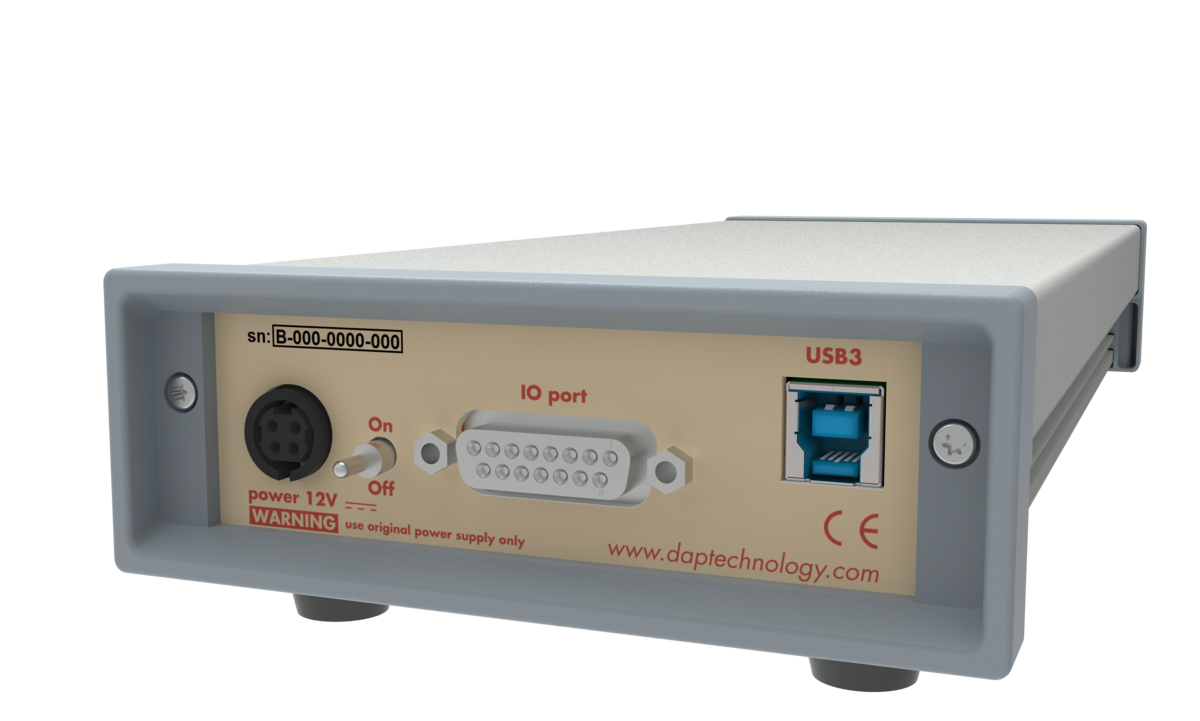

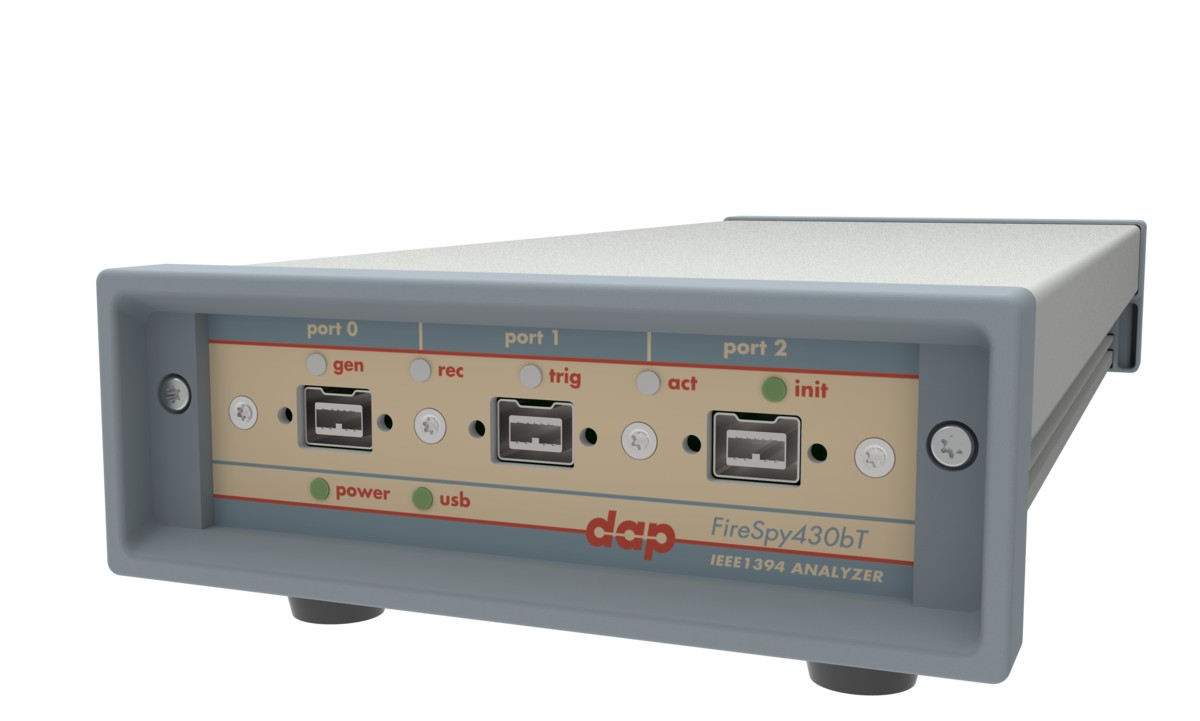

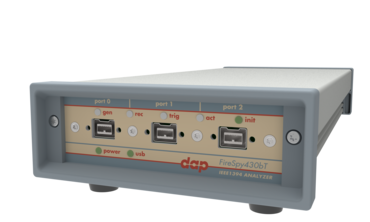

      Product Image(s)

      Architecture Drawing(s):

      Connectivity Example(s):

    • Documents
    • Sales

      FireSpy® 430b(T)/830b(T) sales info

      Package Contents

      • FireSpy430b(T)/830b(T)
        • Switching AC/DC Power Supply
        • Trigger Cable
        • USB Cable
        • 1x Beta cables (CAFW99), additional cables can be purchased separately

      Delivery time

        Typically 2 weeks. Please contact sales(at)daptechnology.com for more detailed information.

        Warranty

          Standard: 36 months, limited.

          Options: Additional 1-year SW/FW Support packages may be purchased.

          Support

            All products will be supported on a 24 hours response basis and free of charge for the first 24 months. For support questions please contact: sales(at)daptechnology.com

            Of course you can also call us during our office hours from 9:00 until 17:00 hours (GMT +1:00). Contact Info

            Upgrades

              Software updates are available for download during the support period of your FireSpy. Please enter the serial number on the Software Download page to see what is the latest version available.

              Once you have owned a FireSpy® for a long time at some point you may want to upgrade it to a later model. Should you want to know more about upgrade pricing and compatibility, please contact info(at)daptechnology.com.

              Educational purposes

              For those educational institutions that would like to use our high-specification IEEE-1394 analyzer for educational purposes only, we have a special discount offer. Our FireSpy® software which runs automatically in demo-mode without the use of a FireSpy® has great educational properties. This software can be used for free by everyone and is of great value for learning IEEE-1394. In order to obtain more details about this offer, please contact: sales(at)daptechnology.com

              Price Info / Quote Request

                Please contact sales(at)daptechnology.com for current pricing.
