• Summary

    FireStack®

    FireStack® is DapTechnology’s homegrown 1394 software stack. Initially developed in conjunction with the company’s 1394 Link Layer Controller FireLink®, the product was architectured from ground up in order to support the advanced features of the FireLink® Extended IP solution. Since then additional mechanisms have been added to FireStack® to enable support for generic OHCI compliant Link layers.

    But FireStack® is also a specialty software stack as it targets usage in areas where requirements deviate a bit from the “standard” needs. For example, PCs and consumer electronics implementations differ significantly from their industrial, vision and aerospace counterparts. In many of these latter examples the focus lies on performance, latency, robustness, etc.

    Conceptually, FireStack® addresses all these issues. It complies with IEEE-1394 requirements as well as select higher protocol layers e.g. IIDC). And as the only product in the market it natively supports AS5643 features and functions. Due to the time critical aspects of that AS5643 protocol FireStack® is only supported when running on top of an LLC with embedded AS5643 HW support (see FireLink® and FireTrac®).

    FireStack® is also an alternative to using general purpose software implementations with standard OHCI I/O interfaces as it offers a more deterministic approach. Modern plug & play solutions are not always recommended for use in enclosed systems since they typically add undesired bus traffic, latencies, etc... The ability to customize FireStack® modules allows focusing on the task requirements without unwanted system, traffic and data overhead.

    Key features

    • IEEE-1394 Software Stack
    • AS5643 module
    • Compatible with OHCI Link Layers
    • Optimized transaction management
    • Configurable and customizable
    • Support for various operating systems

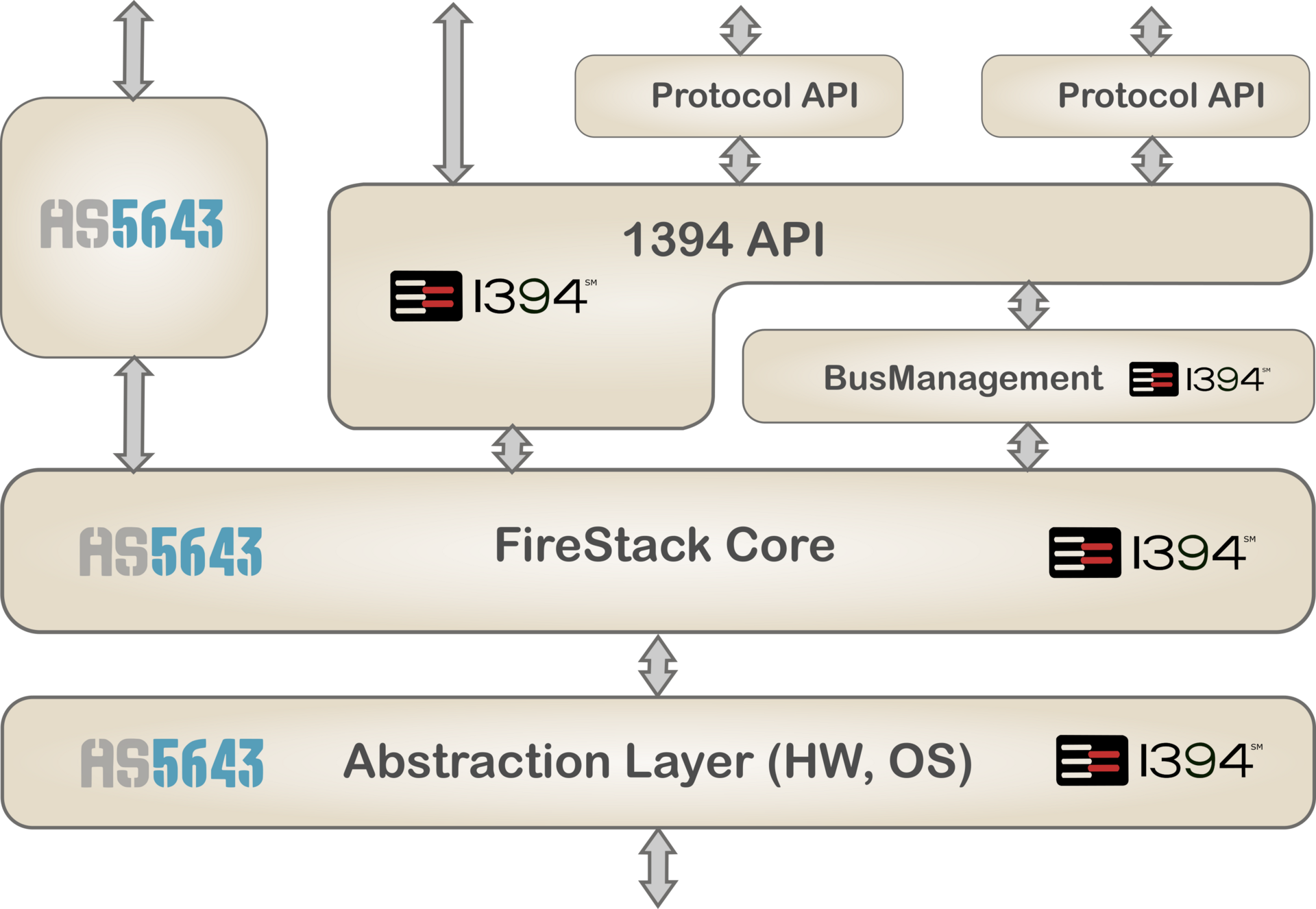

    Software Layers Diagram

  • Details

    FireStack® Details

    Optimized transaction management

    FireStack® features an innovative 1394 packet handler, whose objective is to reduce resource burden when receiving and transmitting 1394 packets. The consistent utilization of zero-copy operations greatly enhances the overall system performance. FireStack® provides memory buffers accessible by both the user application and the 1394 Link Layer DMA engine.

    For example, when transmitting an asynchronous packet and the user application has filled the memory buffer with the needed packet data, FireStack® will hand the buffer directly to the Link Layer for reading the packet into the packet transmission FIFO without having the CPU copy memory to memory.

    Likewise, displaying a video stream from an IIDC camera only requires creation of DMA-capable reception buffers for the video frame data and registration of notification upon filling of a complete frame. Once notified the buffers holding the received data can be accessed directly by the video rendering engine in order to move the data to video card memory.

    Inbound Transactions:

    Inbound Transactions (handling of incoming requests) are defined in two separate methods:

    Map Local Memory: The user can "map" a memory buffer to a specific address space. The contents of the memory buffer can be accessed by the user application at any point in time. At the same time when the stack receives a request packet from a remote device it will automatically perform the response operation (read, write or lock) and will send a response packet back to the requester. The user has the option to be notified by the notification callback function when the transaction completes.

    Transaction Handler: Similar to the Map Local Memory above the user can "register for" a specific address space instead of "mapping" local memory. When the stack receives a request packet it will call the user-specified handler callback function. The user can then perform any operation within the callback function. Upon returning from the handler callback, the FireStack® may transmit a response packet. The notification callback function will be called after completion of the response process.

    Outbound Transactions:

    This module can be used to perform memory transactions (read, write, lock) on remote nodes. When a memory transaction is initiated FireStack® will automatically determine the maximum speed to the destination node by performing the needed PHY remote accesses.

    Outbound Transactions can be used in the following ways with respect to result indication: In Blocking mode the TX functions will not return until the response packet is received and thus making the code sequential. In contrast to that the Non-Blocking mode can be used to initiate a series of “split” transactions i.e. a series of requests that are then followed by the corresponding - but not necessarily sequential - responses.

    Isochronous Messaging:

    The Isochronous Streaming modules build on the mechanisms for efficient data processing defined by OHCI and provide a flexible and user-friendly API around it. Linked lists of buffers can be setup by the user application and will be automatically processed by the Link Layer DMA engine. Notification mechanisms are available for buffer and/or packet completion.

    AS5643 Module

    The SAE-AS5643 protocol differs from other 1394 protocols because of its stringent timing requirements. Because of potential inaccuracies and unpredictable latencies possible with software implementations, DapTechnology strongly believes that the AS5643 protocol timing is best implemented via a HW extension in the 1394b Link Layer. Therefore, Dap has added the AS5643 protocol timing in FireLink® Extended as an add-on module. With this HW support FireLink® Extended is easily capable of meeting the AS5643 frame timing requirements and eliminates the need for complicated interrupt schemes or real-time operating systems typically needed to efficiently use the AS5643 protocol.

    The FireStack® software library contains a AS5643 protocol module that can be used to control the AS5643 hardware of either a custom FireLink Extended enabled product or DapTechnology's FireTrac I/O card. This section describes how frame timing can be configured and used for both timed transmission and reception.

    Frame Timing: FireStack® is very flexible in the way it handles the timing of Start of Frames. Frame synchronization for AS5643 reception and transmission may be configured as either “Free Running” or internal clock (based on a 1 ms input signal), based on STOF packets on the bus (just any packet on a configurable channel) or on an External Sync Input Signal.

    Reception: AS5643 reception provides a filtering mechanism and all incoming packets will be run against a comprehensive verification system. Messages can be filtered on channel number, AS5643 message ID or a combination of both.

    Transmission: AS5643 Transmission module can be used to control devices that support AS5643 timed transmission in hardware – as done with DapTechnology's FireTrac® and FireLink® Extended. FireTrac offers very accurate transmission timing without software intervention enabling this functionality without the need for a Real-Time operating system. The following transmission modes are available:

    Streaming messages: Allows writing large or small sets of messages to FireStack® and having them transmitted automatically at specified frame offset times. The provided data needs to contain so called frame separator elements to indicate that the following message needs to be transmitted in the next frame.

    Repeating messages: Allows setting up a message that will automatically be transmitted each frame by the FireStack®. The user will have a pointer to the actual data of the message and is allowed to manipulate the data at any point in time without having to worry about its timed transmission. This is very useful for AS5643 status messages.

    Single messages: Allows simply transmitting a message as soon as possible but exactly at the specified frame offset time. Several messages may be handed to the FireStack® for immediate transmission and the FireStack® will then take care of the actual moment of transmission.

    STOF Messages: Allows controlling transmission of STOF messages.

    Application Programming Interface (API)

    FireStack® provides an API with multiple levels of abstraction from the 1394 bus. The User Support API allows for a very “1394-unaware” application programming. Due to the very high degree of abstraction the user does not have to be a 1394 expert for most of the typical 1394 bus control and transaction handling tasks. This high level API focuses on ease-of-use, low learning curve and streamlined programming.

    For very fundamental 1394 bus controls a Low Level API is available. It can be used for operations on the basic 1394 level. For example this API allows for remote PHY access, commands, bus optimization, error condition testing, etc. As an example, it‘s goal is to provide CRC overwrite functionality in order to simulate erroneous bus signaling as well as other advanced and non-standard features within a SW stack. It is important to understand that some of these features are (or will be) available on specialized Link Layer controllers.

    Configurability / Customization

    The FireStack® architecture supports a very modular software design. Several modules of the stack, e.g. the Isochronous Resource Manager, Cycle Master and Bus Manager, can be compiled-in or left out based on user needs. If compiled-in they can be disabled on FireStack startup (if needed).

    The default FireStack® package contains all modules and license keys used to unlock individual features. Based on customer demand the deliverable can be customized with only the needed modules included in order to reduce size and increase performance.

  • Specification

    FireStack® specifications

    IEEE-1394-2008 compliant:

    Low-Level API (packet TX/RX, topology, ...)
    Isochronous Streaming API
    Inbound Transactions API (Memory or Handler Mapped)
    Outbound Transactions API
    Serial Bus Management API

    Support for High Level Protocols:

    AS5643
    (support for other protocols is pending or on request)

    Supported Link Layer Controllers:

    Select OHCI Link Layer Controllers

    Supported Operating Systems:

    Windows7 and Windows10
    VxWorks 5.5 or later  (please contact for specific CPU support)
    SGI IRIX
    LabView and LabView RT version 8 and later
    Linux
    XILINX PPC (please contact for specific board support)

  • Media

    FireStack® media files

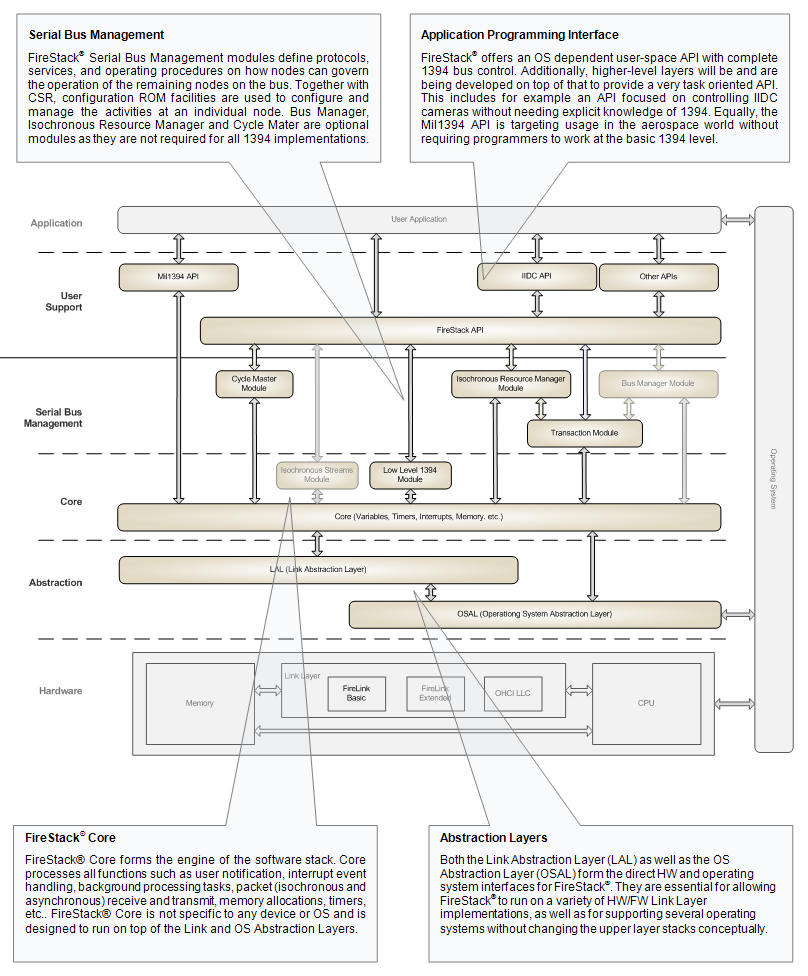

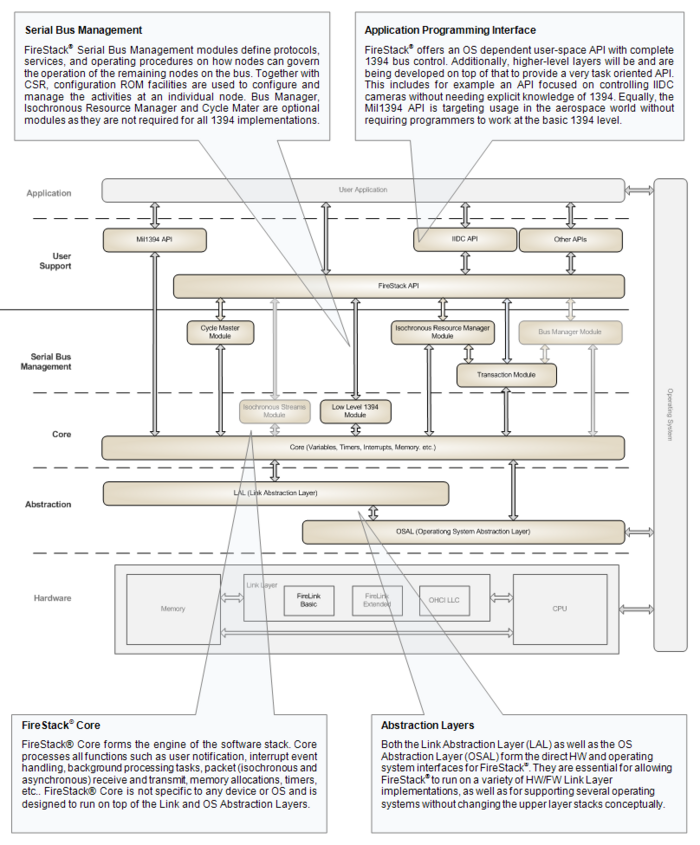

    Structure





  • Documents

    FireStack® documentation

    Manual

    Manual availabe on request.

  • Sales

    FireStack® sales info

    Please contact DapTechnology directly by sending an email to sales(at)daptechnology.com for additional information about pricing and licensing!
