FireSpy® 450b(T)/850

The FireSpy450b, FireSpy450bT and FireSpy850 bus analyzers complete the second generation of 1394 analyzers offered by DapTechnology. Based on the industry leading FireSpy800, the all new and enhanced architecture of the FireSpy810, as well as the form factor advantages introduced with the FireSpy3850, make these PCI form factor analyzer cards the most compelling package for card-based 1394 analysis solutions found in the industry.

The PCI format takes flexibility to a higher level. This solution enables users to install the FireSpy hardware in any PC that has at least one PCI slot available. This allows for installation of the FireSpy Analyzer in developers’ existing PC’s, rugged field service laptops or lunchbox computers.

The FireSpyx50(bT) are equipped with 1GB of on-board memory. The units offer extensive hardware filtering and trigger possibilities due to efficient programmable logic and an on-board processor. They support up to 800Mb (400Mb for the FireSpy450b) transfer rates and are fully IEEE 1394b compliant. Three bilingual or Beta 1394 ports (depending on model) allow for convenient connection to the system under test. As an added feature the FireSpy450b uses dip-switches to conveniently allow the changing of PHY port speed/mode settings.

The graphical user interface runs on WindowsTM Operating Systems. It is intuitive and offers a user friendly way of data presentation and user control. Additionally, the included API even allows you to build your own control software or interface using C/C++ or LabVIEWTM. The seamless integration of the AS5643 protocol makes the FireSpy850 or the FireSpy450b an ideal tool for many Aerospace & Defense development tasks. For long distance applications DapTechnology also offers the FireSpy450b in an impedance matching transformer configuration, i.e. the FireSpy450bT.

Life Cycle Status

End of Sales     Aug 2020
not recommended for new designs
replaced by: TBA /  FireSpy422bT/822bT

Key features

  • IEEE 1394-1995, 1394a-2000 and 1394b-2002 compliant
  • Supported the following speeds: three (3) Ports: S100-S400 Legacy and S400-S800 Beta
  • PCI 2.1 compliant
  • On-board 400 MHz RISC processor and programmable logic
  • 1 GByte on-board memory
  • GUI and API for WindowsTM Operating Systems
  • 3 1394 ports
  • Bus Power Provider *
  • Powerful software provides:
    • Monitor
    • Recorder
    • Commander
    • Scriptor (programmable in C-like language)
    • Generator
    • Filter and Trigger
    • Mil1394 Signal Monitor
  • Support for AS5643, AV/C, SBP2, IP1394 and IIDC protocols
  • Internal SelfTest
  • C/C++ API with LabVIEWTM wrappers

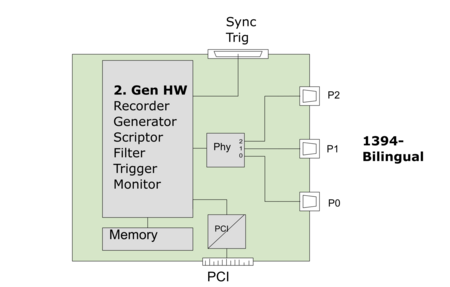

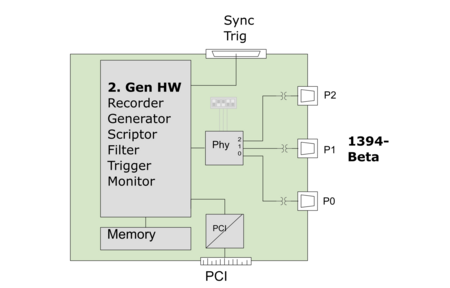

Block Diagram

FireSpy® 450b(T)/850 specifications

Dimensions: Half length PCI card, 15mm x 106mm x 174mm
Weight: 150 g
Power Requirements: 12V, 10 Watt maximum
Regulatory compliance: FCC Class A , CE
Connections:

32bit/33MHz PCI connector, universal keyed (for 3.3V and 5V slots)

3x IEEE1394 connectors (bilingual or Beta)

Indicators: -
Switches: Dip-switches for PHY port Speed/Mode Selection (FS450b only)
Part Number:

FS085 (FS085AS5643 with AS5643 protocol)

FS045 (FS045AS5643 with AS5643 protocol)

FS045bT (FS045bTAS5643 with AS5643 protocol)

Codes:

ECCN:3A992.a

HTS: 8471.90.0000



SW Add-on modules:









IP1394 protocol software package

SBP2 protocol software package

IIDC protocol software package

AV/C protocol software package

AS5643 protocol software pack

FireSpy® 450b(T)/850 media files

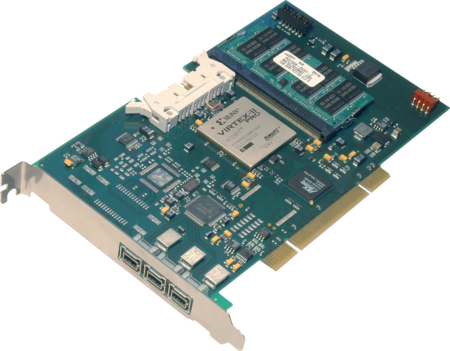

Product Image(s)
