    FireSpy® 3811

    The Triple Series USB/Ethernet hosted FireSpy3811 provides three FireSpy bus analyzer engines in one compact package. Designed to meet the requirements of AS5643 based triple-redundant bus architectures, the FireSpy3811 allows to be connected to three separate IEEE-1394 buses while connecting to three synchronized analysis engines. Based on our 2nd generation hardware platform, the FireSpy3811 contains 1GB internal memory and a powerful processor to provide the resources needed to service all three buses. The USB2.0 and Ethernet host interfaces allow capture data and all other communication with the FireSpy to be 10 to 40 times faster than our Basic Series products.

    The FireSpy3811 brings out six ports, two from each analyzer engine, to IEEE-1394 Bilingual 9-pin connectors. The AS5643/1 active transformer coupled ports can only operate at S400 and S800 Beta data rates, while the bilingual ports support S100, S200 and S400 legacy connections and S400 and S800 Beta connections.

    The FireSpy3811 utilizes the same FireDiagnostics Suite™ software as all other FireSpy bus analyzers however, all bus analyzers are presented in a single GUI. FireDiagnostics Suite™ supports Windows™ Operating Systems. Additionally, the FireDiagnostics Suite API allows you to build your own control software using C/C++ or LabVIEW™.

    The seamless integration of the AS5643 protocol makes the FireSpy3811 the preferred tool for many Aerospace & Defense development tasks. DapTechnology has made considerable efforts to fully support the SAE AS5643 protocol in all major functional areas of the FireSpy3811 and continuously updates the analyzers' functionality according to implementation requirements and ongoing standardization efforts.

    Life Cycle Status

    End of Sales    Aug 2020
    not recommended for new designs
    replaced by TBA

    Key features

    • IEEE-1394-2008 and AS5643 compliant
    • Supports the follwing data transfer rates: two (2) Ports (per bus): S100-S400 Legacy and S400 - S800 Beta
    • Host connection to PC via USB 2.0 or Ethernet (10/100 BaseT) interface
    • Standalone operation using internal flash memory option
    • On-board 400 MHz RISC processor and programmable logic
    • 1GB internal memory
    • GUI and API for WindowsTM Operating Systems
    • 3 analyzer engines in one product
    • Enhanced Scriptor functionality for real-time monitoring and asynchronous packet generation
    • Powerful software provides:
      • Monitor
      • Recorder
      • Commander
      • Scriptor (programmable in C-like language)
      • Generator
      • Filter and Trigger
      • Mil1394 Signal Monitor
    • Support for AS5643, AV/C, SBP2, IP1394 and IIDC protocols
    • Internal SelfTest
    • C/C++ API with LabVIEWTM Wrappers

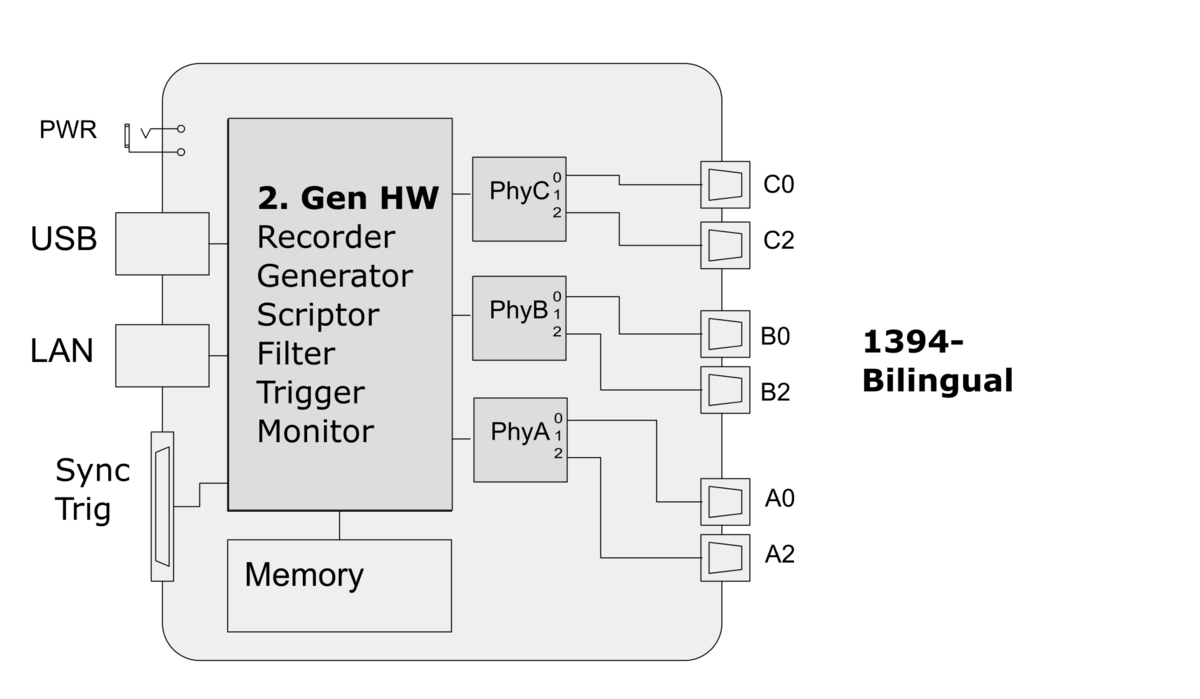

    Block Diagram

  • Specification

    FireSpy® 3811 specifications

    Dimensions: 125 mm x 48 mm x 209 mm
    Weight: 800 g
    Power Requirements: 12V, 10 Watt maximum
    Regulatory compliance: FCC Class A , CE
    Connections:

    USB-connector for host-computer

    6 IEEE-1394 connectors (bilingual)

    BNC-connector for external trigger-input signal

    Indicators





    Green LEDs for:
        USB connection, Power on, Ready, Trigger

    Red LEDs for:
         Record, Active

    Switches: Tumble switch for Power On/Off
    Part Number: FS3811 (FS3811AS5643 withAS5643 protocol)
    Codes:

    ECCN:3A992.a

    HST: 9030.40.00



    SW Add-on modules:









    SBP2 protocol software package

    IIDC protocol software package

    AV/C protocol software package

    IP1394 protocol software package

    AS5643 protocol software pack

  • Media

    FireSpy® 3811 media files

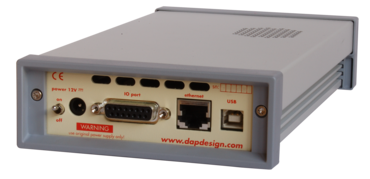

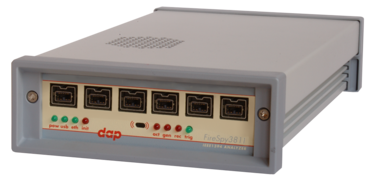

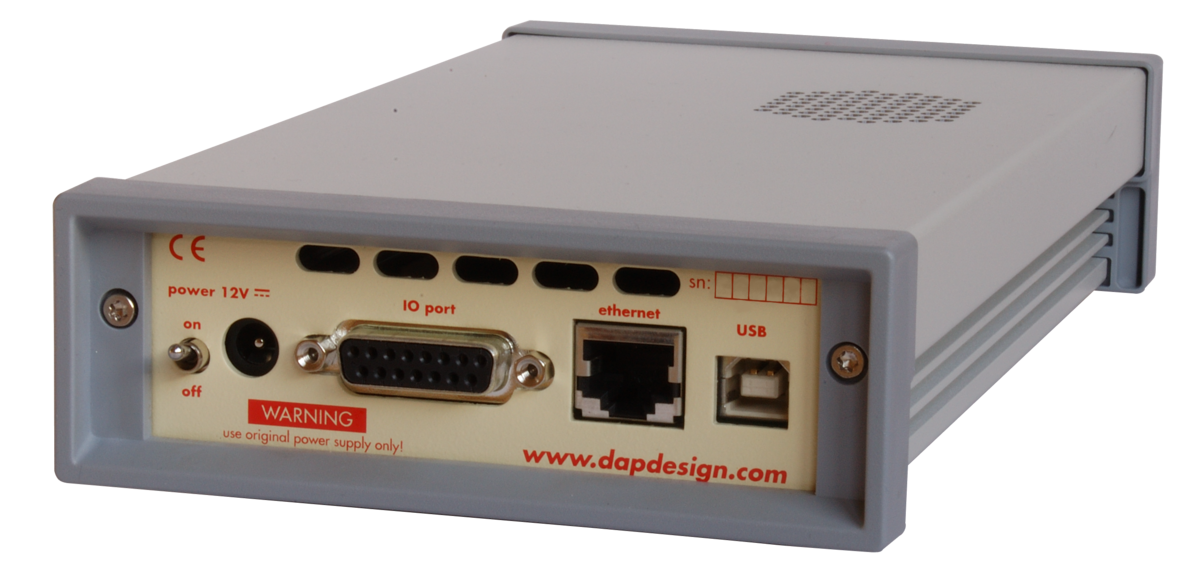

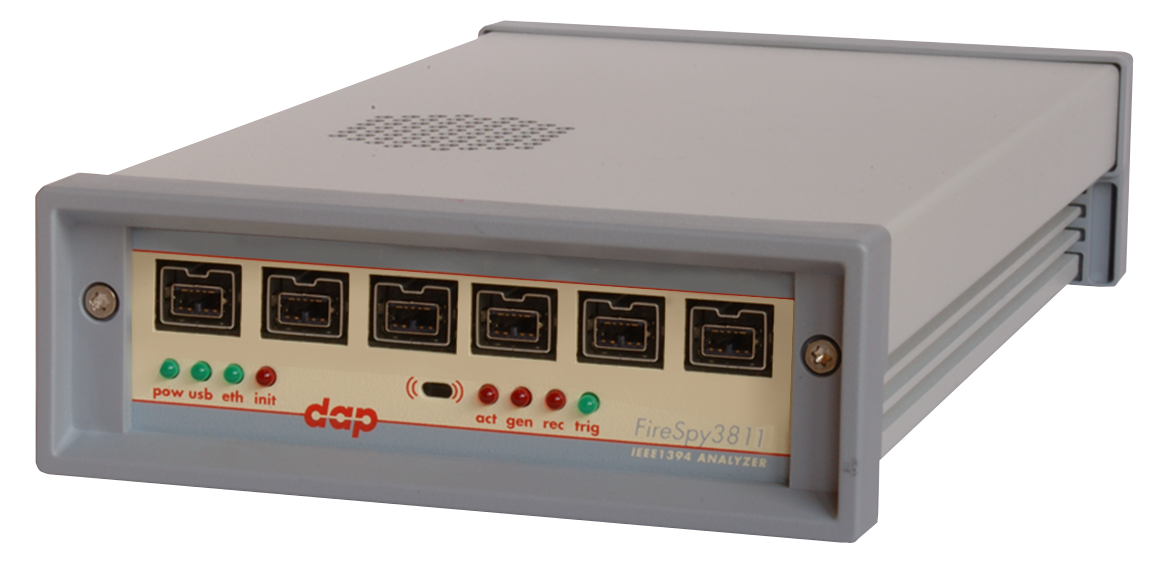

    Product Image(s)

    Connectivity Example(s):

  • Documents
  • Sales

    FireSpy® 3811 sales info

    Package Contents

    • FireSpy3811
    • Switching AC/DC Power Supply (12V, 5A)
    • USB Cable
    • 3x Beta cables (CAFW99)

    Delivery time

    Lead time is based on special project terms. Please contact sales(at)daptechnology.com for more detailed information.

    Warranty

    Standard: 36 months, limited.

    Support

    All products will be supported on a 24 hours response basis and free of charge for the first 24 months. For support questions please contact: sales(at)daptechnology.com

    Of course you can also call us during our office hours from 9:00 until 17:00 hours (GMT +1:00). Contact Info

    Price Info / Quote Request

      Please contact sales(at)daptechnology.com for current pricing.
